Precision Ventilation Control for Commercial Kitchens

Product Description:

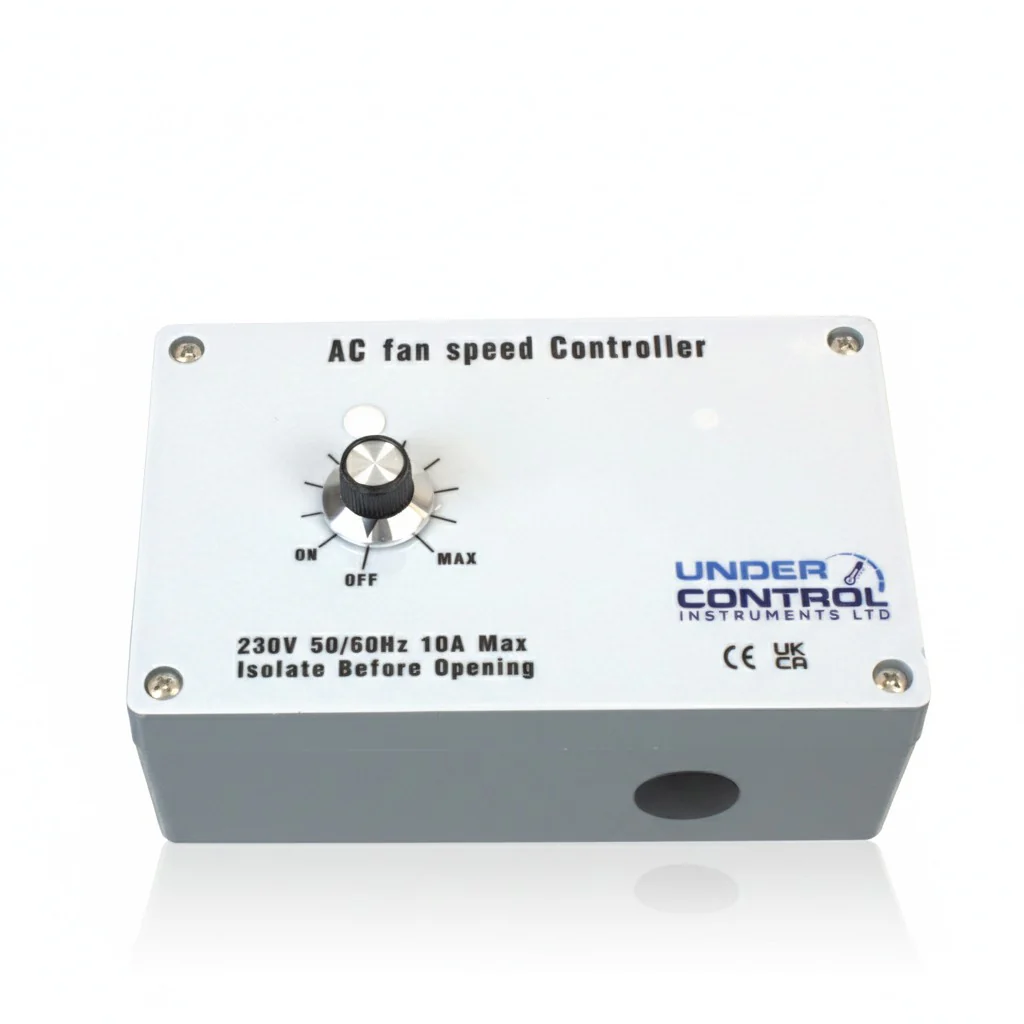

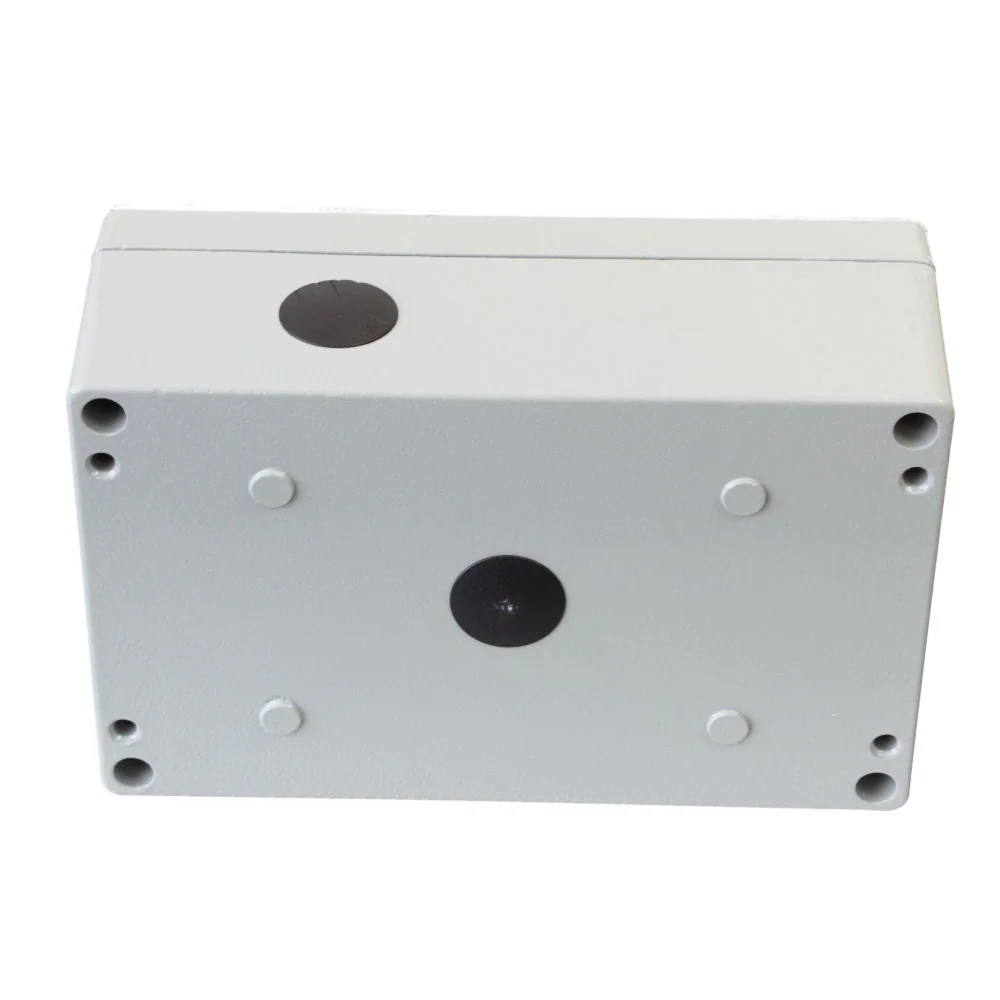

The Extractor Canopy Fan Speed Controller range is available in 6A and 10A versions, providing precise and reliable control of ventilation fans in commercial kitchens, catering environments, and industrial spaces. Designed to optimise airflow performance, these controllers help maintain comfortable working conditions while reducing fan noise, energy use, and wear on components.

Both models feature a manual rotary dial for smooth speed adjustment, allowing easy control over extractor and canopy fans to match ventilation needs. The durable, compact housing and thermal overload protection ensure safe and long-lasting performance in demanding professional environments.

Ideal for use with canopy extract fans, air handling systems, and HVAC units, these speed controllers offer dependable performance for continuous operation.

Available Models:

6A Version: Suitable for small to medium canopy fans
10A Version: Ideal for larger extractor systems or multiple fan setups

Key Features:

Current Ratings: 6A or 10A options
Voltage: 230V AC, 50/60Hz
Control Type: Manual variable rotary dial
Mounting: Wall or panel mount configuration
Protection: Built-in thermal overload protection
Operation: Designed for continuous duty use
Performance: Smooth, silent fan speed control
Build: Robust and compact for commercial environments

Benefits:

✔ Provides accurate control of airflow and ventilation levels
✔ Reduces fan noise and improves energy efficiency
✔ Extends fan motor lifespan through controlled operation
✔ Simple to install and operate
✔ Available in two current ratings to suit different fan sizes

Typical Applications:

Commercial kitchen extractor canopies
Restaurant and catering ventilation systems
Industrial air handling and HVAC units
Mobile catering vehicles and prep areas

Technical Specifications

Specification	6A Model	10A Model
Power Supply	230V AC, 50/60Hz	230V AC, 50/60Hz
Maximum Current Load	6 Amps	10 Amps
Control Method	Variable manual rotary dial	Variable manual rotary dial
Mounting Type	Wall or panel mounting	Wall or panel mounting
Protection Class	IP54 (typical)	IP54 (typical)
Operating Temperature	-10°C to +50°C	-10°C to +50°C
Housing Material	Metal	Metal
Dimensions (approx.)	150mm x 110mm x 70mm	150mm x 100mm x 70mm
Weight (approx.)	500g	500g
Certifications	CE compliant	CE compliant

Important Installation & Safety Notice

Installation of this Extractor Canopy Fan Speed Controller is an electrical procedure and must only be performed by a qualified and competent electrician in accordance with all local electrical codes, safety regulations, and the product's wiring diagram. Always disconnect power to the ventilation system at the mains supply before attempting any inspection, installation, or repair work. Improper installation can lead to electrical shock, fire, damage to equipment, or void warranties.

Customer Reviews

⭐⭐⭐⭐⭐

"Game-Changer for Our Kitchen!"

"This 10A fan speed controller transformed our kitchen ventilation. We can now precisely control the airflow, which means less noise when it's quiet and full power when we're busy. The hum-reduction screw actually works! Highly recommended for any commercial kitchen." — Head Chef, Busy Restaurant

⭐⭐⭐⭐⭐

"Robust & Easy to Wire"

"As an electrician, I appreciate the build quality of this controller. The metal casing and IP65 rating are excellent for a kitchen environment, and the cable glands made wiring straightforward. The client is delighted with the quiet operation and energy savings." — Certified Electrician, Commercial Installations

Frequently Asked Questions (FAQs)

Q1: What is the benefit of controlling fan speed from 10% to 98%?

A1: This wide control range allows you to match ventilation precisely to demand. During off-peak hours or for lighter cooking, you can run fans at lower speeds, significantly reducing noise and energy consumption. For heavy cooking, you can ramp them up to near full power for maximum extraction.

Q2: How does the trimming screw reduce motor hum?

A2: Fan motors can sometimes produce a low-frequency hum, especially at certain speeds, due to harmonic distortion in the electrical supply. The trimming screw allows for fine adjustment of the voltage waveform, which helps to 'tune out' or minimise this hum, making the fan operate more quietly.

Q3: Can this controller manage multiple fans simultaneously?

A3: This 10A unit can control multiple fans as long as the combined running current of all connected fans does not exceed 10 Amps. Always check the amperage rating of your fans before connecting. For higher total amperages, different rated controllers are available.

Q4: What does the IP65 rating mean?

A4: IP65 means the controller is "dust-tight" (the '6') and protected against "water jets" from any direction (the '5'). This makes it suitable for environments where dust and occasional water splashes are present, like commercial kitchens.

Q5: Is this suitable for domestic kitchen extractor fans?

A5: While it could technically work for some domestic fans if their amperage is within limits, this controller is typically designed and rated for the more robust demands of commercial kitchen ventilation systems due to its higher capacity, IP65 rating, and focus on both inlet/outlet control.

Take control of your kitchen's air quality and energy efficiency. Invest in the Extractor Canopy Fan Speed Controller 10A today! Add to cart!
