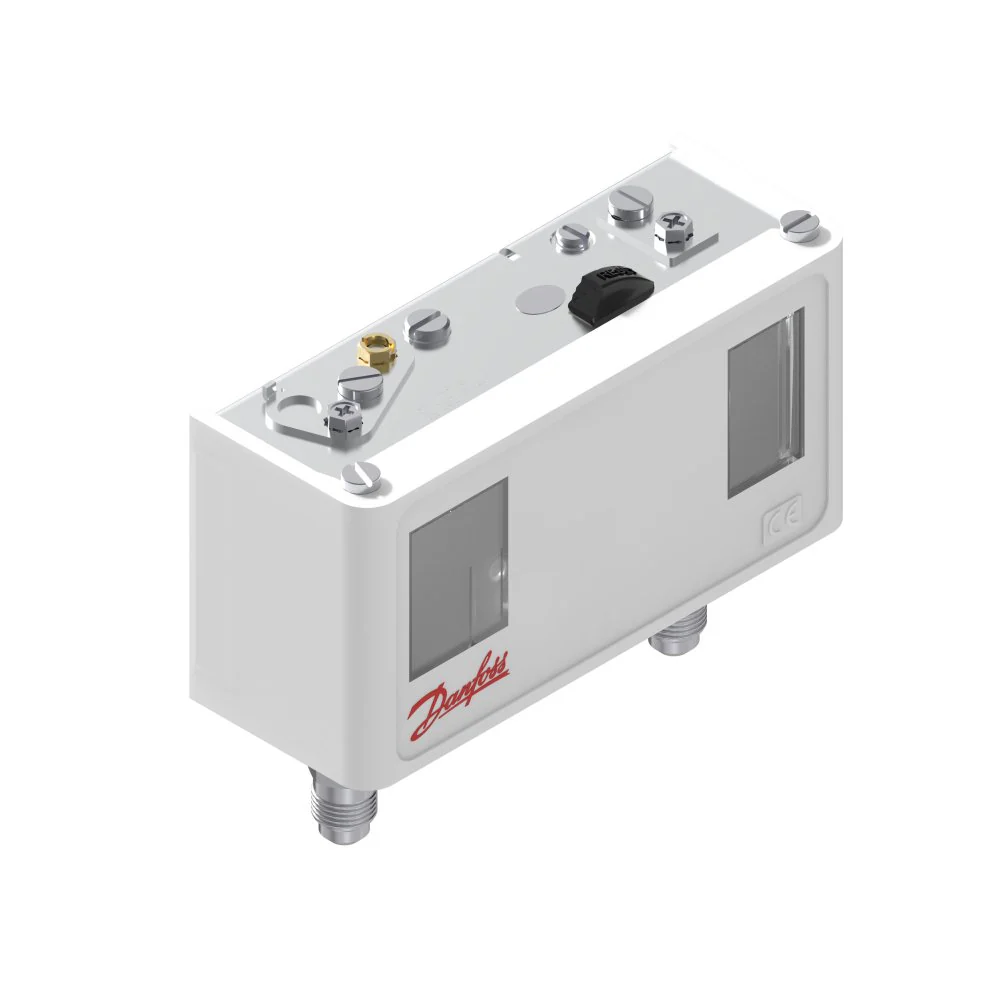

Danfoss pressure switch kp15 060-126466, double.

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	149 °F
Ambient temperature range [°F] [min]	-40 °F
Application note	Not applicable for liquid line
Approval	BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PZH RINA RMRS RoHS China UKCA c UL us UL873, CS C22.2
China RoHS compliance	Yes
Contact function	SPDT+SPST(NO)
Contact rating	AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V Terminal D: 50 VA, 400 V
Differential left side [bar] [max]	4 bar
Differential left side [bar] [min]	0.7 bar
Differential left side [psi] [max]	58 psi
Differential left side [psi] [min]	10 psi
Differential right side [bar]	4 bar
Differential right side [psi]	58 psi
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Lubricants compatibility	Oilfree applications
Max.test press.left side[bar]	20 bar
Max.test press.right side[bar]	35 bar
MWP left side [bar] Pe	17 bar
MWP left side [psig] Pe	245 psig
MWP right side [bar] Pe	35 bar

MWP right side [psig] Pe	510 psig
Oil free refrigerants	R134a R513A R515B
Other RoHS documentation	Saudi Arabia RoHS
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	DIN 8906
Pressure connection type	Flare
Pressure Male/Female	Male
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Dual Pressure Control
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R113 R1234yf R1234yz R1234ze(E) R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R454C R455A R507A R513A R515B
Regulation left side [bar]Pe [max]	7.5 bar
Regulation left side [bar]Pe [min]	-0.2 bar
Regulation left side range Pe	6 inHg - 108 psig
Regulation right side [bar]Pe [max]	32 bar
Regulation right side [bar]Pe [min]	8 bar
Regulation right side [psig]Pe [max]	464 psig
Regulation right side [psig]Pe [min]	116 psig
Reset function, left side	Auto
Reset function, right side	Manual Max
SCIP dossier no.	b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name	KP/KPI pressure switch
Serviceable	No
Type	KP15
UK RoHS compliance	Yes
UL approval file name	E31024
UL approved refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B
